SpringBot IDE Setup - Visual Studio Code

This guide will walk through the process of setting up and using Visual Studio Code to work with a SpringBot application.

Setup VS Code

1. Download for your OS from the Visual Studio website, and install according to the setup instructions.

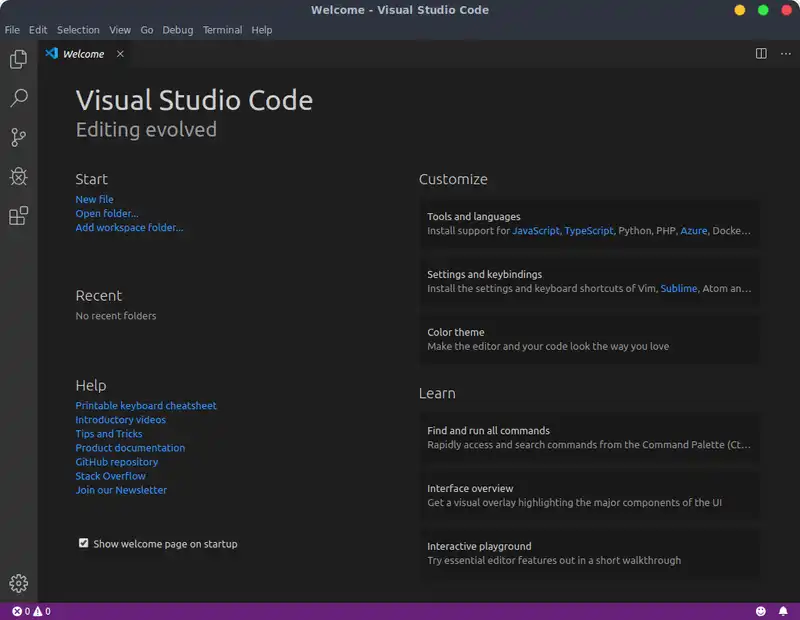

2. Once you have completed your install, open VS Code.



3. Install the following plugins by pressing Ctrl+P (or Cmd+P on Mac) to open the command palette and copying and pasting the following install commands in, one by one.

   1. Java Extension Pack - ext install vscjava.vscode-java-pack
   2. Angular Language Service - ext install Angular.ng-template
   3. Spring Boot Extension Pack - ext install Pivotal.vscode-boot-dev-pack
   4. Debugger for Chrome ext install msjsdiag.debugger-for-chrome



4. Reload your VS Code instance.



Source Code

We assume that you have already cloned your project somewhere on your file system. While the location of your files does not matter, for this guide we will assume you have placed them in the location used in previous lessons, i.e /data/repository/[yourProject].

1. Use Ctrl+O (or Cmd+O on Mac) and navigate to the root of your project before clicking ok.

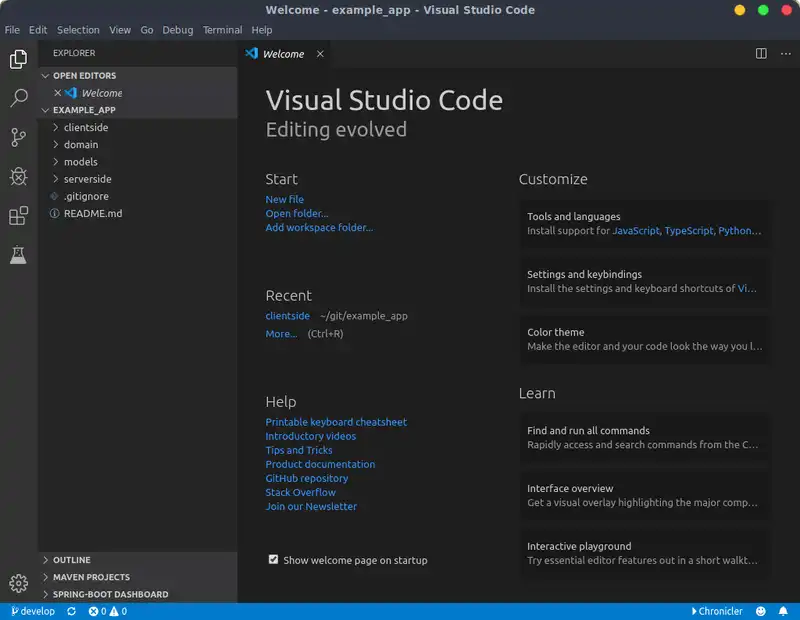

2. Save it as a workspace. Ctrl+Shift+p (or Cmd+Shift+p on Mac) to open the command palette and type “Workspaces: Save Workspace as…” and select the item that matches.



3. Enter your workspace name. i.e example_app.

Tasks

Tasks are a powerful VS Code mechanism that allow us to automate parts of our development process. For this guide, we have configured a set of tasks that are useful for developing with SpringBot.

To setup tasks, walk through the following.

1. Create a new tasks.json file.

   1. Click the Terminal menu bar menu,
   2. Select the Configure Default Built Task
   3. Click any gear icon to open up a new tasks.json file.

2. Copy the following into your new tasks.json file.

    {
         // See https://go.microsoft.com/fwlink/?LinkId=733558
         // for the documentation about the tasks.json format
         "version": "2.0.0",
         "tasks": [
             {
                 "type": "npm",
                 "script": "build",
                 "path": "clientside/",
                 "problemMatcher": []
             },
             {
                 "label": "Run All",
                 "type": "shell",
                 "dependsOn": [
                     "Run Server",
                     "Run Client"
                 ],
                 "group": "test",
                 "presentation": {
                     "reveal": "always",
                     "panel": "dedicated",
                     "clear": true,
                     "revealProblems": "onProblem"
                 }
            },
            {
                "label": "Run and Debug Server",
                "type": "shell",
                "command": "./gradlew",
                "args": [
                    "bootRun",
                    "--debug-jvm"
                ],
                "group": "test",
                "presentation": {
                    "reveal": "always",
                    "panel": "dedicated",
                    "clear": true,
                    "revealProblems": "onProblem"
                },
                "options": {
                    "cwd": "serverside",
                    "env": {
                        "DATA_SOURCE_PASSWORD": "bots",
                        "DATA_SOURCE_USERNAME": "codebots",
                        "DATA_SOURCE_URL": "jdbc:postgresql://localhost:5432/codebots",
                        "HIBERNATE_DDL": "update",
                        "SPRING_PROFILES_ACTIVE": "dev",
                    }
                },
             },
             {
                 "label": "Run Server",
                 "type": "shell",
                 "command": "./gradlew",
                 "args": [
                     "bootRun"
                 ],
                 "group": "test",
                 "presentation": {
                     "reveal": "always",
                     "panel": "dedicated",
                     "clear": true,
                     "revealProblems": "onProblem"
                 },
                 "options": {
                     "cwd": "serverside",
                     "env": {
                         "DATA_SOURCE_PASSWORD": "bots",
                         "DATA_SOURCE_USERNAME": "codebots",
                         "DATA_SOURCE_URL": "jdbc:postgresql://localhost:5432/codebots",
                         "HIBERNATE_DDL": "update",
                         "SPRING_PROFILES_ACTIVE": "dev",
                     }
                 }
             },
             {
                 "label": "Run Client",
                 "type": "shell",
                 "command": "ng",
                 "args": [
                     "serve"
                 ],
                 "group": "test",
                 "presentation": {
                     "reveal": "always",
                     "panel": "dedicated",
                     "clear": true
                 },
                 "options": {
                     "cwd": "clientside"
                 },
                 "problemMatcher": {
                     "fileLocation": "relative",
                     "pattern": {
                         "regexp": "^(.*):(\\d+):\\s+(warning|error):\\s+(.*)$"
                     },
                     "severity": "error"
                 }
             },
             {
                 "label": "Build All",
                 "type": "shell",
                 "dependsOrder": "sequence",
                 "dependsOn": [
                     "Build Client",
                     "Build Server"
                 ],
                 "group": "build",
                 "presentation": {
                     "reveal": "always",
                     "panel": "dedicated",
                     "clear": true,
                     "revealProblems": "onProblem"
                 },
                 "problemMatcher": []
             },
             {
                 "label": "Build Client",
                 "type": "shell",
                 "command": "npm",
                 "args": [
                     "run",
                     "buildProd"
                 ],
                 "options": {
                     "cwd": "clientside"
                 },
                 "group": "build",
                 "presentation": {
                     "reveal": "always",
                     "panel": "shared",
                     "clear": true,
                     "revealProblems": "onProblem"
                 }
             },
             {
                 "label": "Build Server",
                 "type": "shell",
                 "command": "./gradlew",
                 "args": [
                     "bootWar"
                 ],
                 "options": {
                     "cwd": "serverside"
                 },
                 "group": "build",
                 "presentation": {
                     "reveal": "always",
                     "panel": "shared",
                     "clear": true,
                     "revealProblems": "onProblem"
                 }
             },
             {
                 "label": "Run Build Artefact",
                 "type": "shell",
                 "command": "java",
                 "args": [
                     "-jar",
                     "*.war"
                 ],
                 "options": {
                     "env": {
                         "SPRING_PROFILES_ACTIVE": "test"
                     },
                     "cwd": "serverside/build/libs"
                 },
                 "group": "build",
                 "presentation": {
                     "reveal": "always",
                     "panel": "shared",
                     "clear": true,
                     "revealProblems": "onProblem"
                 },
                 "problemMatcher": []
             },
             {
                 "label": "Build and Run",
                 "type": "shell",
                 "dependsOrder": "sequence",
                 "dependsOn": [
                     "Build All",
                     "Run Build Artefact"
                 ],
                 "problemMatcher": []
             }
         ]
    }


   This will give you the following tasks that can be run from within VS Code.

   Task	Action
   Run Client	Run the client-side in development mode. It will be available through your browser at http://localhost:4200.
   Run Server	Run the server-side in development mode (profile = dev). This uses ./gradlew bootRun, the server-side will be available at http://localhost:8080.
   Run and Debug Server	Run the server-side in debug mode (profile = dev). This uses ./gradlew bootRun, the server-side will be available at http://localhost:8080. The server will remain paused until you connect the debugger on port 5005.
   Run All	Runs both Run Client and Run Server
   Build Client	Builds the client-side in production mode
   Build Server	Builds a JAR of the server side
   Build All	Calls Build Client and Build Server strictly in that order to ensure the artefact that is produced includes both client and server.
   Run Build Artefact	Runs the build artefact produced by Build Server or Build All. By default this will make you application accessible on http://localhost:8080.
   Build and Run	Combines the tasks Build All and Run Build Artifact and runs them in that order. By default this will make you application accessible on http://localhost:8080.

3. To run a task, type Ctrl+Shift+P (or Cmd+Shift+P on Mac OS) and search for Tasks: Run Task from the command palette.

Client-side Development

Running

You can use the Run Client task to run the client-side.

This will activate a file watcher. Any changes made to your html, ts or scss will cause your client side to re-transpile your code and your new changes will become available at http://localhost:8080 once it has completed.

Debugging

VS Code supports debugging for many languages. For details on how the debugger works, please see the VS Code Debugging docs. We have installed Debugger for Chrome plugin to debug out client-side.

To start debugging your client-side, complete the following steps.

1. Run the Run Client task.

2. Create a new Debugging profile.

   1. Click the debug sidebar menu item

   2. Click the gear icon. and select Chrome.
   3. Update the newly created launch configuration to:
      url = http://localhost:4200,
      webroot = ${workspaceFolder}/clientside

3. Make sure it matches the following:

    {
         // Use IntelliSense to learn about possible attributes.
         // Hover to view descriptions of existing attributes.
         // For more information, visit: https://go.microsoft.com/fwlink/?linkid=830387
         "version": "0.2.0",
         "configurations": [
             {
                 "type": "chrome",
                 "request": "launch",
                 "name": "Launch Chrome against localhost",
                 "url": "http://localhost:4200",
                 "webRoot": "${workspaceFolder}/clientside",
             }
         ]
     }


4. Run the Run Client task. Once you see Compiled in your terminal, move onto the next step
5. Run the newly created profile. This will open a chrome window
6. You can now debug as normal.

Server-side Development

Running

To run, use the Run Server task. Unfortunately, unlike the client-side, the server-side task does not start a file watcher. Once you made any changes, simply restart by re-rerunning the task.

Debugging

For more details on how Java debugging works in VS Code, read Running and Debugging in Java.

To setup debugging for the server-side, see the following steps.

1. Create a new launch task

   1. Click the debug sidebar menu item

   2. Click the down arrow icon. and select add config [workspace name i.e example_app].
   3. Select Java Attach
   4. Update the newly created launch configuration to: port = 5005,
   5. Save

2. Make sure it matches the following:

    {
         // Use IntelliSense to learn about possible attributes.
         // Hover to view descriptions of existing attributes.
         // For more information, visit: https://go.microsoft.com/fwlink/?linkid=830387
         "version": "0.2.0",
         "configurations": [
             {
                 "type": "java",
                 "name": "Debug (Attach)",
                 "request": "attach",
                 "hostName": "localhost",
                 "port": 5005,
             },
             {
                 "type": "chrome",
                 "request": "launch",
                 "name": "Launch Chrome against localhost",
                 "url": "http://localhost:4200",
                 "webRoot": "${workspaceFolder}/clientside",
             }
         ]
     }


3. Run the “Run and Debug Server” task. Once you see the message Listening for transport dt_socket at address: 5005 in your integrated terminal, move onto the next step.
4. Run your new debug profile by selecting the debug drop down and clicking your newly created launch configuration.
5. You can now place break points and debug as usual.
